HLSL (Pixel shader) effects tutorial

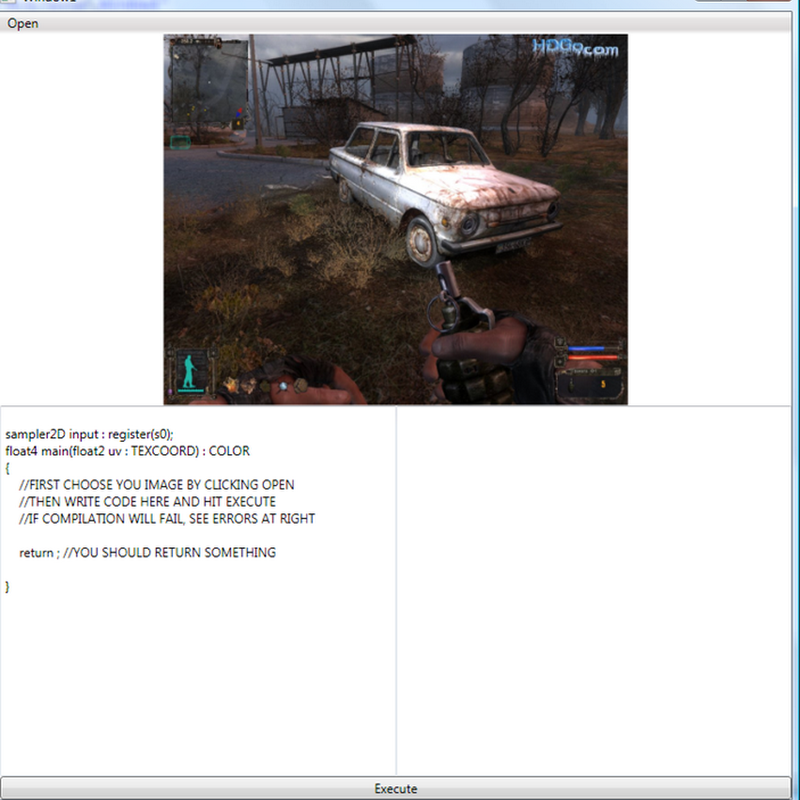

Recently, I already wrote about PixelShader effects, introduced in .NET framework 3.5 SP1 (WPF). However it looks like for most people this syntax is still hard to understand. Today we’ll try to lean it more. In order to do this, I wrote small program, that helps you to write and debug pixel shader effects quickly. This how it looks like


Hit Open to load image, Write your code and hit Execute to compile and apply bitmap dx effect to the image. Let’s start from very beginning. Effect, that does nothing:

sampler2D input : register(s0);
float4 main(float2 uv : TEXCOORD) : COLOR
{
    float4 Color;
    Color = tex2D( input , uv.xy);
    return Color;
}

This is the results:


What was done? We got pixel. Read it color and return it as it to the shader. Let’s do something more interesting.

Actually we can get float2 as coordinate, this means, that it can be spitted to uv.x and uv.y. Also color is float4 (argb), thus we can change color. Let’s multiply color by 3

Color = tex2D( input , uv.xy)*3;

And the result is bright image


We also can make operations with variables.

Color = tex2D( input , uv.xy)*uv.x;

Result


We not have to change whole color. We can also change only its part. Blue for example

Color = tex2D( input , uv.xy);
Color.b = Color.b*2;

Result


Or execute math operations

Color = tex2D( input , uv.xy);
Color.r = Color.r*sin(uv.x*100)*2;
Color.g = Color.g*cos(uv.x*150)*2;
Color.b = Color.b*sin(uv.x*50)*2;

Result


Color is not only thing we can operate. Actually we’re sampling coordinates, so operations done with coordinates should work. Let’s try to stretch image

uv.x = uv.x * 0.5;
Color = tex2D( input , uv.xy);

Result


Why 0.5? Should not it make it smaller? Actually not, you’re multiplying coordinates, so to make the image smaller, you should divide

uv.x = uv.x / 0.5;
Color = tex2D( input , uv.xy);

Result


Some math could be fun here also

uv.y = uv.y  + (sin(uv.y*100)*0.03);
Color = tex2D( input , uv.xy);

Result


There are a ton of interesting effects you can do by using pixel shaders. Here for example color shift

   Color = tex2D( input , uv);
Color.r -= tex2D( input , uv +(somevar/100)).r;
Color.g += tex2D( input , uv+ (somevar/200)).g;
Color.b -= tex2D( input , uv+ (somevar/300)).b;

Result:


Or, even cooler efects

Color -= tex2D(input , uv.xy-0.003)*2.7f;
Color += tex2D( input , uv.xy+0.003)*2.7f;
Color.rgb = (Color.r+Color.g+Color.b)/3.0f;

Result


You can also use cases and ifs for even cooler effects

Color.rgb = (Color.r+Color.g+Color.b)/3.0f;
if (Color.r<0.2 || Color.r>0.9) Color.r = 0; else Color.r = 1.0f;
if (Color.g<0.2 || Color.g>0.9) Color.g = 0; else Color.g = 1.0f;
if (Color.b<0.2 || Color.b>0.9) Color.b = 0; else Color.b = 1.0f;

Result


Other words, the sky is the limit.

Please note, that Pixel Shaders done in GPU only, thus it is the most efficient method to manipulate your images. Actually, you can apply effect to any UIElement, thus the sky is really the limit.

Have a nice day and be good people. Download code for this article. Notice, that you’ll need DirectX SDK to compile pixel shader files and use this program
